DEVELON DX680HD Hydraulic Excavator
PRODUCT PARAMETERS
DESCRIPTION
PRODUCTS DESCRIPTION

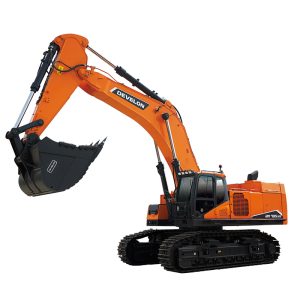

The DEVELON DX680HD hydraulic excavator is designed for heavy-duty applications including ore loading and crushing. It features a Svedere DC13 engine delivering 331 kW at 1,800 rpm and a standard 4.5 m³ bucket (optional 6.65 m³ heavy-duty bucket), providing a 40% increase in earthmoving capacity per cycle. The reinforced structure with a box-type spiral track frame and self-lubricating track system ensures stability on harsh mining terrain. Equipped with DPF+SCR system and intelligent temperature control, the DX680HD supports multi-mode operation and provides efficient, reliable performance. Centralized maintenance access, dual filtration, and an engine maintenance platform simplify upkeep, while a panoramic cab, FOPS/ROPS protection, and low-vibration track rotation improve safety and operator comfort.
PRODUCTS STRUCTURE
TECHNICAL PARAMETER
| Item | Specification |
|---|---|
| Engine Model | Scania DC13 |
| Cylinders | 6 |
| Bore & Stroke | Φ130 mm × 160 mm |
| Rated Power | 331 kW / 1,800 rpm |
| Main Pump Type | Variable Axial Piston Pump |
| Main Pump Max Flow | 4 × 230 L/min |
| Swing System Drive | Hydraulic Drive |
| Swing Reduction | Planetary Gear Reduction |
| Swing Brake | Wet Multi-Plate Brake |
| Swing Speed | 8.0 rpm |
| Boom Cylinder | 2-180 × 125 × 1,750 mm |
| Arm Cylinder | 1-200 × 140 × 1,879 mm |
| Bucket Cylinder | 1-185 × 130 × 1,465 mm |
| Max Digging Force – Arm | 28.8 ton |
| Max Digging Force – Bucket | 33.6 ton |
