DEVELON DX210/205/305/500/380MH Multifunctional Material Handling Machines
PRODUCT PARAMETERS
DESCRIPTION
PRODUCTS DESCRIPTION
DEVELON DX210/205/305/500/380MH Multifunctional Material Handling Machines are designed for intelligent, versatile, and high-efficiency material handling. Continuously upgraded for smarter operation, they comply with National IV emission standards to support carbon neutrality and peak emission reduction. The machines feature specialized attachments such as clamshell buckets, lotus grapples, and electromagnets, adaptable to diverse material handling scenarios. Various boom types, including goose-neck, extended, and three-section arms, improve operational efficiency. Combination of different attachments and booms is complemented by optimized counterweights for enhanced vehicle stability. Compared with previous generations, engines deliver higher power and torque, while the next-generation hydraulic systems (FEH, VBO, SPC3, EPOS) provide powerful performance and minimized fuel consumption. Safety and comfort are enhanced with optional ROPS-compliant cabin protective screens, large full-color touchscreen displays, upgraded floating seats, and 12V USB charging.

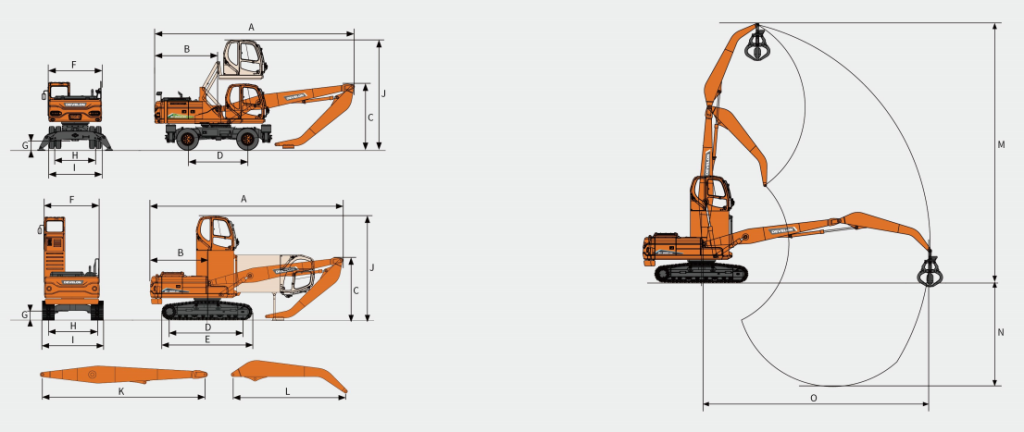

PRODUCTS STRUCTURE
TECHNICAL PARAMETER
| Parameter | DX205 MH | DX380 MH | DX305 MH | DX500 MH |
|---|---|---|---|---|
| Engine Model | Scania DC13 | Develon DL08 | Perkins 1204E | Scania DC09 |
| Suction | Naturally Aspirated | Naturally Aspirated | Turbocharged | Turbocharged |
| Cylinder Count | 6 | 4 | 5 | 6 |
| Bore | 105 mm | 108 mm | 130 mm | 130 mm |
| Rated Power | 204 kW / 1,800 rpm | 294 kW / 1,800 rpm | 110 kW / 2,200 rpm | 240 kW / 1,000 rpm |
| Swing System Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive |
| Swing Reduction | Planetary Gear | Planetary Gear | Planetary Gear | Planetary Gear |
| Swing Brake | Wet Multi-Plate | Wet Multi-Plate | Wet Multi-Plate | Wet Multi-Plate |
| Swing Speed | 10.9 rpm | 9.1 rpm | 9.0 rpm | 11.2 rpm |
| Drive & Brake System | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive |
| Steering Control | Pedal + Joystick Integrated | Pedal + Joystick Integrated | Pedal + Joystick Integrated | Pedal + Joystick Integrated |
| Travel Motor | Axial Piston Hydraulic Motor | Axial Piston Hydraulic Motor | Axial Piston Hydraulic Motor | Axial Piston Hydraulic Motor |
| Travel Speed (High / Low) | 5.9 / 3.6 km/h | 6.1 / 3.4 km/h | 5.2 / 3.0 km/h | 5.5 / 3.1 km/h |
| Service Brake | Hydraulic Brake | Hydraulic Brake | Hydraulic Brake | Hydraulic Brake |
